Service Drop Wire Price
Service Drop Wire is an essential component of overhead electrical distribution systems. It is used to connect the power distribution network from a utility pole to residential, commercial, or small industrial buildings. In the Philippines, where overhead power lines dominate most electrical infrastructure, the demand for high-quality Service Drop Wire continues to grow.
For electrical contractors, importers, utility companies, and construction firms, understanding the Service Drop Wire price in the Philippines is critical when planning projects or purchasing electrical materials. The cost of Service Drop Wire depends on several factors including conductor size, conductor material, insulation type, and manufacturer quality.
What Is Service Drop Wire?
Service Drop Wire refers to the overhead cable that delivers electricity from the utility pole transformer to a building’s service entrance. It is typically installed as an aerial cable between the distribution pole and the consumer’s electrical meter.
A standard Service Drop Wire consists of three main parts:
- Phase Conductors – insulated aluminum wires carrying electrical current.
- Neutral Messenger Wire – usually a bare conductor that supports mechanical tension.
- Weather-Resistant Insulation – protects the conductor from environmental conditions.
Because Service Drop Wire is exposed to outdoor environments, it must withstand:
- High humidity
- Strong UV radiation
- Heavy rain and tropical storms
- High temperatures
- Mechanical tension
These requirements make material quality and conductor design extremely important.
Types of Service Drop Wire
Different power distribution systems require different Service Drop Wire configurations. The most common types include duplex, triplex, and quadruplex service drop cables.
Duplex Service Drop Wire
Duplex Service Drop Wire contains two conductors:
- One insulated phase conductor
- One bare neutral messenger
This cable type is mainly used for 120V residential connections.
Typical Applications
- Small homes
- Temporary power connections
- Rural electrification projects
Advantages
- Lightweight
- Easy installation
- Lower cost

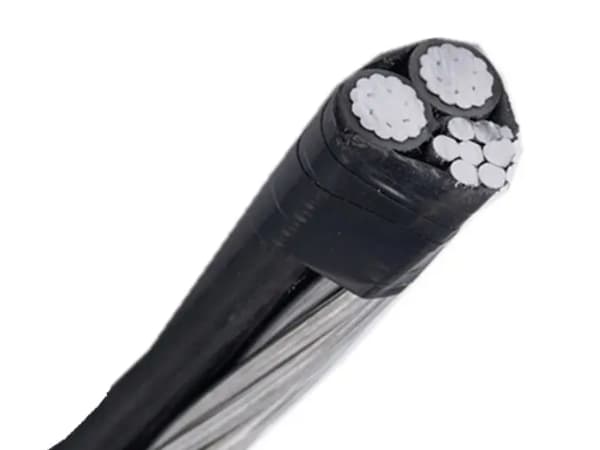

Triplex Service Drop Wire
Triplex Service Drop Wire is the most widely used configuration in residential distribution systems.
It includes:
- Two insulated phase conductors
- One bare neutral messenger
This structure supports 120/240V split-phase electrical systems.
Key Benefits
- Balanced load distribution
- Good mechanical strength
- Excellent reliability
Triplex Service Drop Wire is widely used in urban and suburban areas across the Philippines.
Quadruplex Service Drop Wire
Quadruplex Service Drop Wire contains four conductors:
- Three insulated phase conductors
- One neutral messenger
This configuration is used in three-phase power systems.
Typical Applications
- Commercial buildings
- Factories
- Shopping centers
- Industrial facilities
Quadruplex cables are designed to carry higher electrical loads and maintain stability over longer spans.
Service Drop Cable Technical Data
Duplex Overhead Service Drop Cable
| Code Word | Phase Conductor | Cable OD | Neutral Messenger | Weight | |||||
| Size AWG or kcmil | Number of Strands | Insulation Thickness | Size AWG or kcmil | Number of Strands | Rated Strength | PE | XLPE | ||
| mil | in | lb | lb/kft | lb/kft | |||||
| AAC Conductor and Neutral Messenger | |||||||||
| Pekingese | 6 AWG | 1 | 45 | 0.26 | 6 | 7 | 563 | 63 | 63 |
| Collie | 6 AWG | 7 | 45 | 0.28 | 6 | 7 | 563 | 66 | 66 |
| Cocker | 6 AWG | 7 | 60 | 0.31 | 6 | 7 | 563 | 73 | 72 |
| Dachshund | 4 AWG | 1 | 45 | 0.3 | 4 | 7 | 881 | 94 | 94 |
| Spaniel | 4 AWG | 7 | 45 | 0.33 | 4 | 7 | 881 | 99 | 99 |
| Cairn | 4 AWG | 7 | 60 | 0.36 | 4 | 7 | 881 | 106 | 106 |
| Doberman | 2 AWG | 7 | 45 | 0.39 | 2 | 7 | 1350 | 151 | 151 |
| Malemute | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 7 | 1990 | 241 | 240 |
| AAC Conductor and ACSR Neutral Messenger | |||||||||
| Setter | 6 AWG | 1 | 45 | 0.26 | 6 | 6/1 | 1190 | 75 | 74 |
| Shepherd | 6 AWG | 7 | 45 | 0.28 | 6 | 6/1 | 1190 | 78 | 78 |
| Retriever | 6 AWG | 7 | 60 | 0.31 | 6 | 6/1 | 1190 | 84 | 84 |
| Eskimo | 4 AWG | 1 | 45 | 0.3 | 4 | 6/1 | 1860 | 113 | 113 |
| Terrier | 4 AWG | 7 | 45 | 0.33 | 4 | 6/1 | 1860 | 118 | 118 |
| Yorkshire | 4 AWG | 7 | 60 | 0.36 | 4 | 6/1 | 1860 | 125 | 125 |
| Chow | 2 AWG | 7 | 45 | 0.39 | 2 | 6/1 | 2850 | 182 | 181 |
| Bull | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 6/1 | 4380 | 289 | 288 |
| AAC Conductor and AAAC Neutral Messenger | |||||||||
| Chihuahua | 6 AWG | 1 | 45 | 0.26 | 6 | 7 | 1110 | 67 | 67 |
| Vizsla | 6 AWG | 7 | 45 | 0.28 | 6 | 7 | 1110 | 71 | 70 |
| Harrier | 4 AWG | 1 | 45 | 0.3 | 4 | 7 | 1760 | 102 | 101 |
| Whippet | 4 AWG | 7 | 45 | 0.33 | 4 | 7 | 1760 | 106 | 106 |
| Schnauzer | 2 AWG | 7 | 45 | 0.39 | 2 | 7 | 2800 | 163 | 162 |
| Afghan | 1/0 AWG | 7 | 60 | 0.5 | 1/0 | 7 | 4270 | 261 | 260 |
| Heeler | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 7 | 4270 | 259 | 258 |
Triplex Overhead Service Drop Cable
| Code Word | Phase Conductor | Cable OD | Neutral Messenger | Weight | |||||
| Size AWG or kcmil | Number of Strands | Insulation Thickness | Size AWG or kcmil | Number of Strands | Rated Strength | PE | XLPE | ||
| mil | in | lb | lb/kft | lb/kft | |||||
| Haliotis | 6 AWG | 1 | 45 | 0.26 | 6 | 7 | 563 | 101 | 100 |
| Patella | 6 AWG | 7 | 45 | 0.28 | 6 | 7 | 563 | 108 | 107 |
| Fusus | 4 AWG | 1 | 45 | 0.3 | 4 | 7 | 881 | 149 | 149 |
| Oyster | 4 AWG | 7 | 45 | 0.33 | 4 | 7 | 881 | 159 | 158 |
| Clam | 2 AWG | 7 | 45 | 0.39 | 2 | 7 | 1350 | 240 | 238 |
| Snail | 1/0 AWG | 7 | 60 | 0.5 | 2 | 7 | 1350 | 387 | 385 |
| Murex | 1/0 AWG | 7 | 60 | 0.5 | 1/0 | 7 | 1990 | 387 | 385 |
| Purpura | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 7 | 1990 | 382 | 380 |
| Nassa | 2/0 AWG | 7 | 60 | 0.55 | 2/0 | 7 | 2510 | 477 | 474 |
| Trophon | 2/0 AWG | 19 | 60 | 0.55 | 2/0 | 7 | 2510 | 471 | 469 |
| Melita | 3/0 AWG | 19 | 60 | 0.6 | 3/0 | 19 | 3040 | 581 | 579 |
| Portunus | 4/0 AWG | 19 | 60 | 0.65 | 4/0 | 19 | 3830 | 721 | 718 |
| Nannynose | 336.4 | 19 | 80 | 0.83 | 336.4 | 19 | 6150 | 1162 | 1157 |
Quadruplex Overhead Service Drop Cable
| Code Word | Phase Conductor | Cable OD | Neutral Messenger | Weight | |||||
| Size AWG or kcmil | Number of Strands | Insulation Thickness | Size AWG or kcmil | Number of Strands | Rated Strength | PE | XLPE | ||
| mil | in | lb | lb/kft | lb/kft | |||||
| AAC Conductor and Neutral Messenger | |||||||||
| Quarter | 6 AWG | 1 | 45 | 0.26 | 6 | 7 | 563 | 138 | 137 |
| Clydesdale | 4 AWG | 1 | 45 | 0.3 | 4 | 7 | 881 | 204 | 203 |
| Pinto | 4 AWG | 7 | 45 | 0.33 | 4 | 7 | 881 | 219 | 217 |
| Mustang | 2 AWG | 7 | 45 | 0.39 | 2 | 7 | 1350 | 328 | 326 |
| Criollo | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 7 | 1990 | 524 | 520 |
| Percheron | 2/0 AWG | 19 | 60 | 0.55 | 2/0 | 7 | 2510 | 643 | 640 |
| Hanoverian | 3/0 AWG | 19 | 60 | 0.6 | 3/0 | 19 | 3040 | 792 | 788 |
| Singlefoot | 4/0 AWG | 7 | 60 | 0.65 | 4/0 | 19 | 3830 | 993 | 988 |
| Oldenburg | 4/0 AWG | 19 | 60 | 0.65 | 4/0 | 19 | 3830 | 979 | 974 |
| Lippizaner | 336.4 | 19 | 80 | 0.83 | 336.4 | 19 | 6150 | 1582 | 1574 |
| AAC Conductor and ACSR Neutral Messenger | |||||||||
| Morochuca | 6 AWG | 1 | 45 | 0.26 | 6 | 6/1 | 1190 | 150 | 149 |
| Chola | 6 AWG | 7 | 45 | 0.28 | 6 | 6/1 | 1190 | 161 | 160 |
| Morgan | 4 AWG | 1 | 45 | 0.3 | 4 | 6/1 | 1860 | 223 | 222 |
| Hackney | 4 AWG | 7 | 45 | 0.33 | 4 | 6/1 | 1860 | 238 | 236 |
| Yearling | 2 AWG | 7 | 45 | 0.39 | 4 | 6/1 | 1860 | 324 | 322 |
| Palomino | 2 AWG | 7 | 45 | 0.39 | 2 | 6/1 | 2850 | 358 | 356 |
| Colt | 1/0 AWG | 19 | 60 | 0.5 | 2 | 6/1 | 2850 | 517 | 513 |
| Standardbred | 1/0 AWG | 7 | 60 | 0.5 | 1/0 | 6/1 | 4380 | 523 | 520 |
| Costena | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 6/1 | 4380 | 572 | 568 |
| Haflinger | 2/0 AWG | 19 | 60 | 0.55 | 2/0 | 6/1 | 5300 | 665 | 662 |
| Grullo | 2/0 AWG | 19 | 60 | 0.55 | 1/0 | 6/1 | 4380 | 704 | 700 |
| Claiming | 3/0 AWG | 19 | 60 | 0.6 | 3/0 | 6/1 | 6620 | 781 | 777 |
| Suffolk | 3/0 AWG | 19 | 60 | 0.6 | 1/0 | 6/1 | 4380 | 869 | 865 |
| Toric | 4/0 AWG | 19 | 60 | 0.65 | 4/0 | 6/1 | 8350 | 926 | 922 |
| Filly | 4/0 AWG | 19 | 60 | 0.65 | 2/0 | 6/1 | 5300 | 965 | 960 |
| Appaloosa | 4/0 AWG | 19 | 60 | 0.65 | 4/0 | 6/1 | 8350 | 1075 | 1070 |
| Gelding | 336.4 | 19 | 80 | 0.83 | 4/0 | 6/1 | 8350 | 1557 | 1549 |
| Bronco | 336.4 | 19 | 80 | 0.83 | 336.4 | 18/1 | 8680 | 1633 | 1625 |
| AAC Conductor and AAAC Neutral Messenger | |||||||||
| Bay | 6 AWG | 1 | 45 | 0.26 | 6 | 7 | 1110 | 142 | 141 |
| French Coach | 6 AWG | 7 | 45 | 0.28 | 6 | 7 | 1110 | 153 | 152 |
| German Coach | 4 AWG | 1 | 45 | 0.3 | 4 | 7 | 1760 | 211 | 210 |
| Arabian | 4 AWG | 7 | 45 | 0.33 | 4 | 7 | 1760 | 226 | 224 |
| Belgian | 2 AWG | 7 | 45 | 0.39 | 2 | 7 | 2800 | 339 | 337 |
| Shetland | 1/0 AWG | 19 | 60 | 0.5 | 1/0 | 7 | 4270 | 541 | 538 |
| Thoroughbred | 2/0 AWG | 19 | 60 | 0.55 | 2/0 | 7 | 5390 | 666 | 662 |
| Trotter | 3/0 AWG | 19 | 60 | 0.6 | 3/0 | 7 | 6790 | 821 | 817 |
| Walking | 4/0 AWG | 19 | 60 | 0.65 | 4/0 | 7 | 8560 | 1014 | 1010 |
Conductor Materials Used in Service Drop Wire
The conductor material significantly affects the electrical performance, durability, and cost of Service Drop Wire.
AAC (All Aluminum Conductor)
AAC is commonly used for short span service connections.
Advantages
- Excellent electrical conductivity
- Lightweight structure
- Cost-effective
However, AAC has lower tensile strength compared to reinforced conductors.
AAAC (All Aluminum Alloy Conductor)
AAAC uses aluminum alloy instead of pure aluminum.
Benefits
- Higher mechanical strength
- Better corrosion resistance
- Longer service life
This makes AAAC suitable for coastal areas such as many parts of the Philippines.
ACSR (Aluminum Conductor Steel Reinforced)
ACSR conductors include a steel core surrounded by aluminum strands.
Advantages
- Very high tensile strength
- Excellent sag resistance
- Suitable for long overhead spans
ACSR is widely used when mechanical strength is more important than conductivity alone.
ASTM Conductor Structure Table for Service Drop Wire (6 AWG – 336.4 MCM)
Service Drop Wire conductors are often manufactured according to ASTM standards for aluminum conductors. The following table shows typical conductor constructions used in overhead service cables.
| Conductor Size (AWG/MCM) | Cross Section (mm²) | Stranding (No./mm) | Approx Diameter (mm) | DC Resistance (Ω/km at 20°C) |
|---|---|---|---|---|
| 6 AWG | 13.3 | 7/1.55 | 4.65 | 2.67 |
| 4 AWG | 21.1 | 7/2.00 | 6.00 | 1.68 |
| 2 AWG | 33.6 | 7/2.47 | 7.41 | 1.05 |
| 1/0 AWG | 53.5 | 19/1.89 | 9.45 | 0.66 |
| 2/0 AWG | 67.4 | 19/2.12 | 10.60 | 0.52 |
| 3/0 AWG | 85.0 | 19/2.38 | 11.90 | 0.41 |
| 4/0 AWG | 107.2 | 19/2.67 | 13.40 | 0.32 |
| 266.8 MCM | 135.2 | 19/3.02 | 15.10 | 0.25 |
| 336.4 MCM | 170.3 | 19/3.37 | 16.90 | 0.20 |
These conductor sizes are widely used in overhead service drop cables and comply with international aluminum conductor standards.
Insulation Types for Service Drop Wire
The insulation layer protects conductors from environmental damage and electrical leakage.
XLPE Insulation
Cross-linked polyethylene is the most common insulation used today.
Advantages
- High thermal resistance
- Excellent dielectric strength
- Long service life
- Moisture resistance
Polyethylene (PE)
PE insulation is also widely used in overhead cables.
Benefits
- UV resistant
- Flexible
- Good environmental protection
PVC Insulation
PVC insulation is less common for service drop cables but may still be used in low-cost applications.
Advantages
- Low cost
- Easy manufacturing
Service Drop Wire Price in the Philippines
The Service Drop Wire price in the Philippines varies depending on conductor size, insulation type, and order quantity. Global aluminum prices and shipping costs also influence the final price.
The following table shows typical market price ranges.
| Type | Conductor Size | Estimated Price (USD/m) |
|---|---|---|
| Duplex Service Drop | 6 AWG | $0.40 – $0.70 |
| Duplex Service Drop | 4 AWG | $0.60 – $0.90 |
| Triplex Service Drop | 2 AWG | $1.00 – $1.60 |
| Triplex Service Drop | 1/0 AWG | $1.50 – $2.40 |
| Triplex Service Drop | 4/0 AWG | $2.50 – $3.80 |
| Quadruplex Service Drop | 2/0 AWG | $3.20 – $4.80 |
Bulk purchases for infrastructure projects can significantly reduce unit prices.
Factors Affecting Service Drop Wire Price
Several factors influence the price of Service Drop Wire in the Philippine market.
Aluminum Market Price
Aluminum is the primary material used in Service Drop Wire. Changes in global aluminum prices directly affect cable costs.
Conductor Size
Larger conductors require more raw material, increasing the price.
Insulation Material
Premium insulation such as XLPE costs more but provides longer durability.
Manufacturing Quality
High-quality manufacturing processes improve reliability but may increase initial costs.
Transportation and Import Fees
Since many cables are imported, freight costs, tariffs, and customs fees affect the final price.
Applications of Service Drop Wire
Service Drop Wire is widely used across different power distribution scenarios.
Residential Power Supply
Most homes receive electricity through overhead service drop cables.
Commercial Buildings
Triplex and quadruplex cables supply power to offices, shops, and small businesses.
Rural Electrification Projects
Service Drop Wire plays a key role in extending electricity to remote areas.
Utility Distribution Networks
Electric utilities rely on Service Drop Wire for efficient and cost-effective power delivery.
How to Choose a Reliable Service Drop Wire Manufacturer
Selecting a reliable supplier ensures electrical safety and long service life.
Check International Certifications
Reliable manufacturers follow international standards such as:
- ASTM conductor standards
- IEC insulation standards
- ISO 9001 quality management
Review Technical Specifications
Professional suppliers provide detailed datasheets including:
- Conductor structure
- Electrical resistance
- Insulation thickness
- Mechanical strength
Evaluate Manufacturing Capacity
Large projects require suppliers with strong production capabilities and stable delivery schedules.
About Service Drop Wire price- DOS Cable Manufacturer
Service Drop Wire plays a vital role in overhead power distribution systems throughout the Philippines. It connects utility networks to homes and businesses, ensuring reliable electricity supply.
Understanding the Service Drop Wire price in the Philippines helps contractors and distributors choose the right cable for their projects. Prices vary depending on conductor size, material, insulation type, and order quantity.
By selecting high-quality Service Drop Wire that complies with ASTM and international standards, utilities and contractors can ensure safe, durable, and efficient electrical connections.
As infrastructure development and urban expansion continue across the Philippines, the demand for reliable Service Drop Wire will continue to increase, making it an essential product in the power distribution industry.
Any Service Drop Wire, Please send Our DOS Cable inquiry.
